Waypoint

smart detection nodes

ITT WAYPOINT are intelligent receivers that connect TAG to the ITT SOFTWARE SUITE,
enabling real-time localization through the proprietary Dual-Range Positioning System.

Combining Close-Range precision with Wide-Area coverage, they support both access validation and large-scale tracking within a single infrastructure.

Powered by patented triangulation technology, WAYPOINT collect field data, propagate communications, and provide the information required for accurate positioning. Designed for industrial, maritime, metal structures, and multi-level environments, they deliver high accuracy, reliability, and seamless scalability.

Type of Connection

WAYPOINT can be connected using various technologies, including Ethernet networks with PoE power, RS-485 buses, dedicated field infrastructures, or wireless mesh networks. This flexibility allows the system to be adapted to the characteristics of the existing environment and, where possible, to reuse existing infrastructure.

The MESH SPANNING TREE
architecture developed for ITT is particularly important. Each WAYPOINT maintains the optimal routing path for information to reach the central server and knows how to correctly propagate the data across the network. This approach ensures high reliability, fault tolerance, scalability, and ease of expansion, proving particularly effective in complex industrial plants, naval installations, and sites spread across multiple buildings.

Close & Wide Range

WAYPOINT use dual-range positioning combining close-range detection for precise, point-level identification (e.g. entry/exit validation) and wide-area coverage for continuous tracking over large spaces, seamlessly integrating both to deliver accurate, real-time localization across complex environments.

CLOSE RANGE

8 meters range

CLOSE RANGE

It operates at 125 kHz Low Frequency, a signal that is not shielded by the human body or the orientation of the device. It acts within a restricted and defined radius range up to 8 m and can use an optional perimeter cable to create "virtual fences" or define exact physical gates. Ideal for precise entry and exit detection in rooms and confined spaces.

wide range

20 to 50 meters range

WIDE RANGE

It operates in the 868 MHz UHF band, ideal for complex industrial and naval environments. Coverage can reach up to 50 metres radius ranging in open areas, while it may be reduced to around 20 metres in the presence of concrete walls, metal structures or other significant physical obstacles. It supports a very high density of devices, managing over 1,000 TAG per receiver.

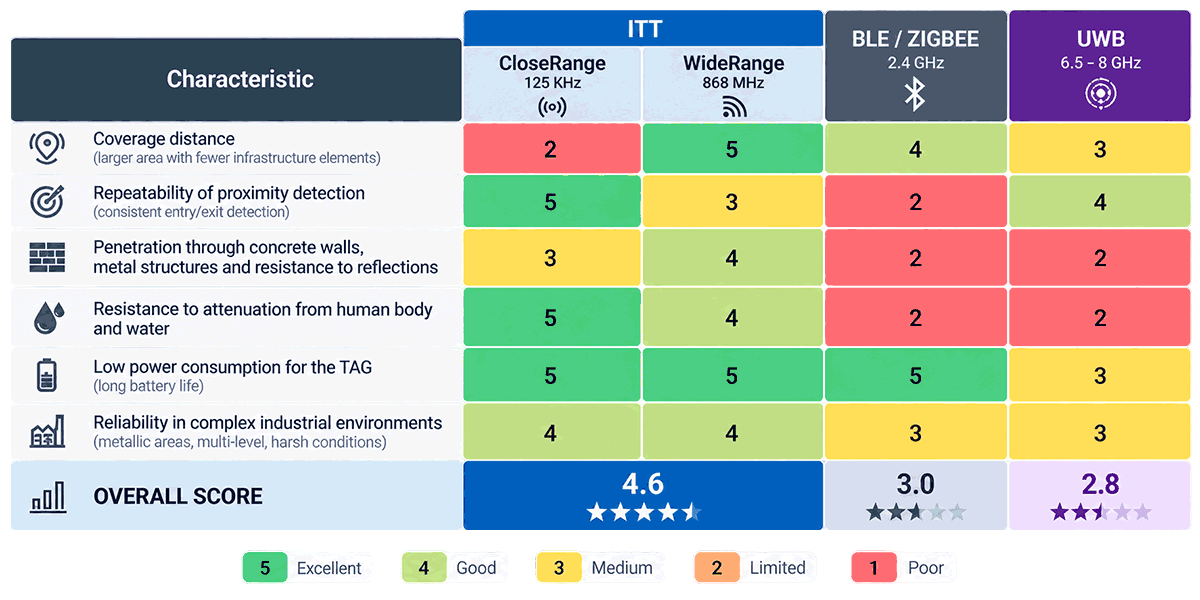

RTLS Technology Comparison

Technical Details

	STANDARD	DC-USB	LAN/PoE	POWER BUS	AC	MINI	BATTERY
MODEL	NZ-ITT-WP1-S	NZ-ITT-WP1-D	NZ-ITT-WP1-L	NZ-ITT-WP1-P	NZ-ITT-WP1-A	NZ-ITT-WP2-M	NZ-ITT-WP1-B
GATEWAY SERVER		USB	LAN	POWER BUS
WIRED BUS
WIDE RANGE
CLOSE RANGE
POWER SUPPLY	DC 12V-24V	5V-USB	POE	48V	AC 110V-220V	AC 110V-220V	BATTERY
TYPICAL APPLICATION	WIRED AREA coverage, with power and data supplied via BUS.	Small installations, DEMO and rapid testing	AREA GATEWAY, receiving data and power via LAN PoE and powering all BUS connected WAYPOINT	FAULT-TOLERANT system for critical, demanding environments	High-precision coverage beyond the reach of the wired bus.	Compactly extending range coverage beyond the wired bus	TEMPORARY INSTALLATIONS with a rechargeable battery (2-4 weeks autonomy)

Easy to install and requiring no specialized Skills, ITT WAYPOINT minimize deployment cost through a hybrid wired and wireless architecture. The self-forming mesh network, based on spanning-tree principles, enables rapid infrastructure expansion while reducing cabling requirements and installation time.

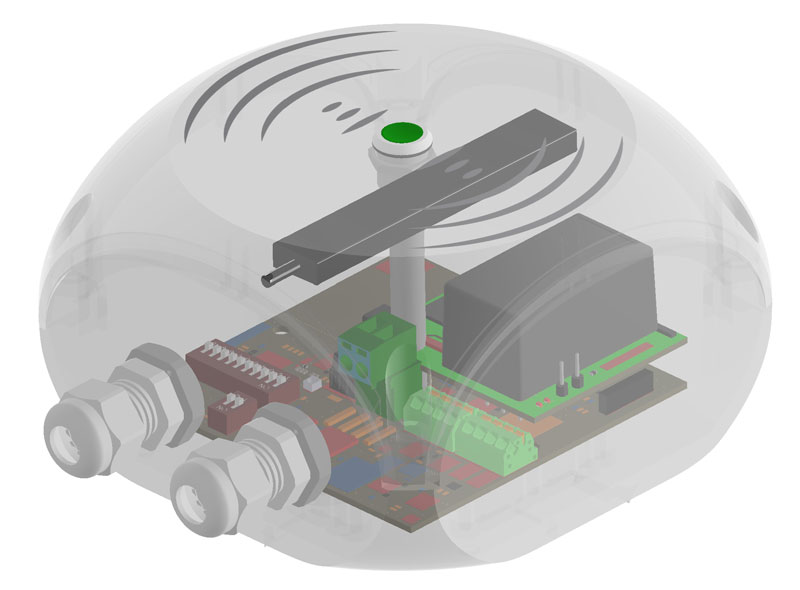

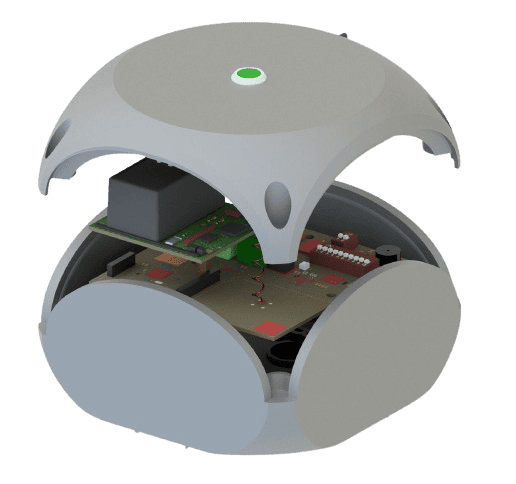

A 3D rendering showing the internal components of a Waypoint device through a translucent dome enclosure, highlighting its circuit board, internal antenna, and cable glands.

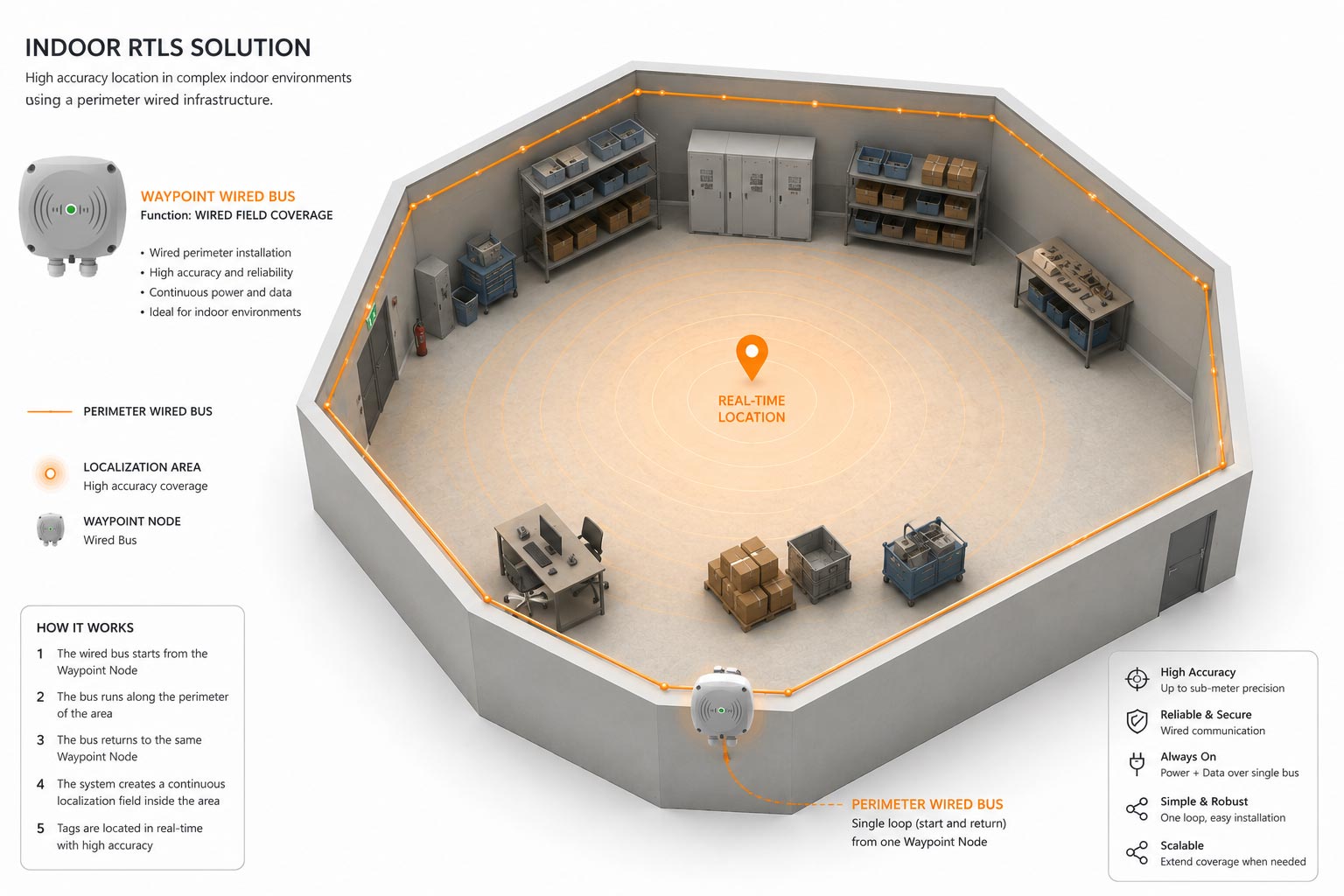

An diagram illustrating an indoor RTLS solution that uses a perimeter wired bus connected to a Waypoint to create a continuous localization field for high-accuracy tracking.

PERIMETER WIRED TECHNOLOGY allows precise detection of TAG presence within defined areas such as offices, laboratories, warehouses, production cells, fenced zones, gates, restricted areas, parking areas, and access-controlled environments.

The Perimeter Wire consists of a simple small cable installed along the boundary of the areas to be monitored.

Fast & Flexible Infrastructure Expansion

WAYPOINTs are powered and connected through PoE  (Power over Ethernet), allowing both data and power to be delivered through a single ethernet cable.

EASY INSTALLATION

Semplified Infrastructured

No additional cabling is required,  the system leverages the existing wired network
